High Tensile Metal Rope Mesh For Architectural Safety Protection

Name: High Tensile Metal Rope Mesh For Architectural Safety Protection
Brand: Anping County Chant Wire Mesh Manufacturing Co.,Ltd
SKU: CHANT-C 1005
Price: 3.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: CHANT

Certification: CE ISO9000

Model Number: CHANT-C 1005

Payment & Shipping Terms

Minimum Order Quantity: 5m2

Price: USD 5-15/m2

Packaging Details: wooden case

Delivery Time: 10 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 8000m2/week

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                High Tensile Metal Rope Mesh, Stainless Steel Rope Net, Safety Protection Architectural Rope Mesh


Material:	SS304	Wire Diameter:	1.2-6.0mm
Hole Size:	25mm-300mm	Mesh Type:	Ferrule Mesh
Characteristic:	Anti-corrosion Non-rusting Anti Acid And Alkali	Weave Style:	Plain Weave,Ferruled,knotted/ferrule,Woven Or Ferruled
Product Name:	High Tensile Stainless Steel Metal Rope Mesh For Architectural Safety Protection	Application:	Protective, Fall Prevention

Material:	SS304
Wire Diameter:	1.2-6.0mm
Hole Size:	25mm-300mm
Mesh Type:	Ferrule Mesh
Characteristic:	Anti-corrosion Non-rusting Anti Acid And Alkali
Weave Style:	Plain Weave,Ferruled,knotted/ferrule,Woven Or Ferruled
Product Name:	High Tensile Stainless Steel Metal Rope Mesh For Architectural Safety Protection
Application:	Protective, Fall Prevention

High Tensile Metal Rope Mesh For Architectural Safety Protection

High Tensile Stainless Steel metal Rope Mesh For Architectural Safety Protection

Product Description :

Stainless steel wire rope mesh is mainly used in the construction for wild zoos, large animal enclosure or aviaries, garden green walls, and also handrail infill or safety mesh. Stainless steel ferrule cable mesh and stainless steel inter-woven cable mesh have different characteristics and applications due to different weaving techniques. Compared with ferrule type rope mesh, the inter-woven type net is lighter in weight, more flexible, and has higher transparency, making it especially suitable for applications such as zoo mesh and fall protection netting. Ferrule type rope mesh is more aesthetically pleasing and decorative, and is often used as an architectural wire mesh for decorative and protective purposes in the construction field.

Material: ss304 ss316 ss316L
Mesh type: 1.Woven 2. Ferrule mesh
cable structures:7 x7, 7 x19

Wire diameter: 1.2mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm 5.0mm 6.0mm etc.

Mesh aperture: 25*25mm -300*300mm etc.

Height: general 0.5-30meter or customized.
Length: general 0.5-30meter or customized.
Shape: There are irregular shape, triangle parallelogram trapezoid etc.

Rope Constructin	Rope Diameter		Opening Size		Breaking Force
	Inch	mm	Inch	mm	KN
7 × 19	1/8	3.2	4.7" × 4.7"	120 × 120	7.38
7 × 19	1/8	3.2	4" × 4"	102 × 102	7.38
7 × 19	1/8	3.2	3.6" × 3.6"	90 × 90	7.38
7 × 19	1/8	3.2	3" × 3"	76 × 76	7.38
7 × 19	1/8	3.2	2" × 2"	51 × 51	7.38
7 × 7	3/32	2.4	4" × 4"	102 × 102	4.18
7 × 7	3/32	2.4	3.6" × 3.6"	90 × 90	4.18
7 × 7	3/32	2.4	3" × 3"	76 × 76	4.18
7 × 7	3/32	2.4	2.4" × 2.4"	60 × 60	4.18
7 × 7	3/32	2.4	2" × 2"	51 × 51	4.18
7 × 7	5/64	2	3" × 3"	76 × 76	3.17
7 × 7	5/64	2	2.4" × 2.4"	60 × 60	3.17
7 × 7	5/64	2	2" × 2"	51 × 51	3.17
7 × 7	5/64	2	1.5" × 1.5"	38 × 38	3.17
7 × 7	1/16	1.6	3" × 3"	76 × 76	2.17
7 × 7	1/16	1.6	2" × 2"	51 × 51	2.17
7 × 7	1/16	1.6	1.5" × 1.5"	38 × 38	2.17
7 × 7	1/16	1.6	1.2" × 1.2"	30 × 30	2.17
7 × 7	1/16	1.6	1" × 1"	25 × 25	2.17
7 × 7	3/64	1.2	2" × 2"	51 × 51	1.22
7 × 7	3/64	1.2	1.5" × 1.5"	38 × 38	1.22
7 × 7	3/64	1.2	1.2" × 1.2"	30 × 30	1.22
7 × 7	3/64	1.2	1" × 1"	25 × 25	1.22

Different types

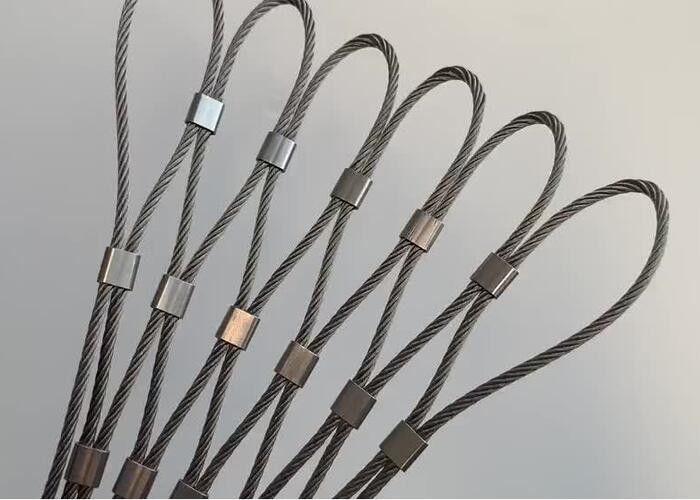

High Tensile Metal Rope Mesh For Architectural Safety Protection 0

Advantage:

1.The netting is clipped to the cable,

2. The mesh size and diameter can be modified

3. It can be made to customer orders and statically tested – especially suitable for facades

4. High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.

5. Anti-corrosive, resist the rust, can be repeated use.

6. Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)

7.This product can bear the heavy snow and the gale very much.

8. without toxic material, safety, environmental protection.

Packing and Shipping

Packing: Paper carton, wooden case

Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.

Applications

High Tensile Metal Rope Mesh For Architectural Safety Protection 1

High Tensile Metal Rope Mesh For Architectural Safety Protection 2
