| Wire Diameter |
1.2 mm,1.5mm,2.0mm or as your requirement |
| Mesh OpeningSize |
From25 x 43mm to 50 x 86 mm or bigger |
| Rope Mesh Material |
Grade A Stainless Steel304,316L |

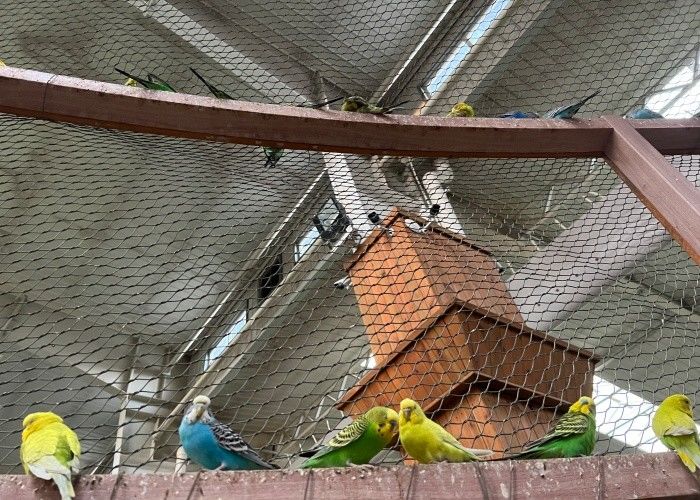

Aviary Wire Mesh Netting is considered to be the strongest, most flexible of all exhibit meshes and is used for containment of all animals with any zoological environment.
Aviary Wire Mesh Netting especially the ferrule type mesh, is made of high quality stainless steel ropes, and it is resistant to rust and corrosion in spite of damp environment for long time. What's more,
its life span can be up to more than 30 years.
Recommended Stainless Steel Cable Mesh Specification for Aviaries :
| Rope Structure |
Rope Diameter
(mm)
|
Mesh Diamond Size
(mm, MW x MH)
|
Normal Break Strength (lbs.) |
|
Rope φ3.0mm, and 3.2mm, etc.
|
3.2mm |
120 x 208 |
1600 |
| 3.2mm |
102 x 177 |
1600 |
| 3.2mm |
90 x 156 |
1600 |
| 3.2mm |
76 x 132 |
1600 |
| 3.2mm |
51 x 88 |
1600 |
|
Rope φ1.0mm, 1.2mm, 1.5mm, 2.0mm and 2.4mm
|
2.4mm |
102 x 177 |
920 |
| 2.4mm |
90 x 156 |
920 |
| 2.4mm |
76 x 132 |
920 |
| 2.4mm |
60 x 104 |
920 |
| 2.4mm |
51 x 88 |
920 |
| 2.0mm |
76 x 132 |
676 |
| 2.0mm |
60 x 104 |
676 |
| 2.0mm |
51 x 88 |
676 |
| 2.0mm |
38 x 66 |
676 |
| 1.5mm |
76 x 132 |
480 |
| 1.5mm |
51 x 88 |
480 |
| 1.5mm |
38 x 66 |
480 |
| 1.5mm |
30 x 52 |
480 |
| 1.5mm |
25 x 44 |
480 |
| 1.2mm |
38 x 66 |
270 |
| 1.2mm |
30 x 52 |
270 |
| 1.2mm |
25 x 44 |
270 |
| 1.2mm |
20 x 35 |
270 |
Mesh geometry
The mesh width (MW) refers to the distance from the centre of one ferrule to the centre of the next ferrule. The optimal mesh geometry with an opening angle of 60° is given when the mesh width and the distance between the ferrules' centres along the mesh's cables
are equal. This results in the ideal tension of the mesh and is the mathematical basis for the quantity take-off.
MW Mesh width (distance from center to center of ferrule) α Standard mesh opening 60 °
Packaging
Packaging Details
Plastic paper inside wooden box outside
Application:
The zoo enclosure,animal fence construction,animal cages,bird cages,Ocean Park,garden protection construction,the park,afforest adornment beautification,wildlife park,bridge,the stadium fence,supermarket,airport,exhibition hall,performing arts performances,opera,film and television play props,municipal construction,playgrond use,metal curtain wall,indoor and outoddr decoration,protection
