Stainless Steel Metal Rope Mesh 1.2mm - 4.0mm For Amusement Rides

Name: Stainless Steel Metal Rope Mesh 1.2mm - 4.0mm For Amusement Rides
Brand: Anping County Chant Wire Mesh Manufacturing Co.,Ltd
SKU: CHANT-C 1005
Price: 3.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: CHANT

Certification: CE ISO9000

Model Number: CHANT-C 1005

Payment & Shipping Terms

Minimum Order Quantity: 5m2

Price: USD 5-15/m2

Packaging Details: wooden case

Delivery Time: 10 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 8000m2/week

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                Stainless Steel Metal Rope Mesh, Metal Rope Mesh 1.2mm, Stainless Rope Mesh 4.0mm


Material:	SUS 304 316 316L	Wire Diameter:	1.2mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm
Mesh Type:	Ferrule Mesh	Weave Style::	Plain Weave,Ferruled,knotted/ferrule,Woven Or Ferruled
Size Of Hole:	30mm-300mm	Length:	Customized
Name:	Excellent Flexibility Stainless Steel Metal Rope Mesh For Amusement Rides Anti	Application:	Protective, Fall Prevention

Material:	SUS 304 316 316L
Wire Diameter:	1.2mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm
Mesh Type:	Ferrule Mesh
Weave Style::	Plain Weave,Ferruled,knotted/ferrule,Woven Or Ferruled
Size Of Hole:	30mm-300mm
Length:	Customized
Name:	Excellent Flexibility Stainless Steel Metal Rope Mesh For Amusement Rides Anti
Application:	Protective, Fall Prevention

Stainless Steel Metal Rope Mesh 1.2mm - 4.0mm For Amusement Rides

Excellent Flexibility Stainless Steel Metal Rope Mesh For Amusement Rides Anti

Product Description

Metal rope mesh product introduction
GTW-Steel cable mesh for architectural(Steel sleeve rope mesh)is made by stainless steel ropewoven and extruded steel sleeve, the diameter of wire rope with 1.0, 1.2, 1.5, 2, 3, 4.0mm, wire rope structure 7 * 7,7 * 19 , 1 * 19, the material has 304,316,316 L, then we can also provide hot galvanizing wire mesh products. Steel sleeve material mainly adopts the stainless steel sleeve,there are other aluminum sleeve, copper, tin plated copper sleeve for the customer to choose.

1>Material: SS 304, 304L, 316, 316L
2>Wire structure: 7*7, 7*19
3>Wire diameter: 1.2mm-3.2mm
4>Mesh opening size: 20*20-120*120mm
5>Application: Wire Rope Mesh can be safely contain any species on land, in the air indoors or out.
For the construction of Animal Enclosure, Animal Cage, Aviary mesh, Bird Cage and Bird Netting.

Rope Constructin	Rope Diameter		Opening Size		Breaking Force
	Inch	mm	Inch	mm	KN
7 × 19	1/8	3.2	4.7" × 4.7"	120 × 120	7.38
7 × 19	1/8	3.2	4" × 4"	102 × 102	7.38
7 × 19	1/8	3.2	3.6" × 3.6"	90 × 90	7.38
7 × 19	1/8	3.2	3" × 3"	76 × 76	7.38
7 × 19	1/8	3.2	2" × 2"	51 × 51	7.38
7 × 7	3/32	2.4	4" × 4"	102 × 102	4.18
7 × 7	3/32	2.4	3.6" × 3.6"	90 × 90	4.18
7 × 7	3/32	2.4	3" × 3"	76 × 76	4.18
7 × 7	3/32	2.4	2.4" × 2.4"	60 × 60	4.18
7 × 7	3/32	2.4	2" × 2"	51 × 51	4.18
7 × 7	5/64	2	3" × 3"	76 × 76	3.17
7 × 7	5/64	2	2.4" × 2.4"	60 × 60	3.17
7 × 7	5/64	2	2" × 2"	51 × 51	3.17
7 × 7	5/64	2	1.5" × 1.5"	38 × 38	3.17
7 × 7	1/16	1.6	3" × 3"	76 × 76	2.17
7 × 7	1/16	1.6	2" × 2"	51 × 51	2.17
7 × 7	1/16	1.6	1.5" × 1.5"	38 × 38	2.17
7 × 7	1/16	1.6	1.2" × 1.2"	30 × 30	2.17
7 × 7	1/16	1.6	1" × 1"	25 × 25	2.17
7 × 7	3/64	1.2	2" × 2"	51 × 51	1.22
7 × 7	3/64	1.2	1.5" × 1.5"	38 × 38	1.22
7 × 7	3/64	1.2	1.2" × 1.2"	30 × 30	1.22
7 × 7	3/64	1.2	1" × 1"	25 × 25	1.22

Different types

Stainless Steel Metal Rope Mesh 1.2mm - 4.0mm For Amusement Rides 0

Features

Stainless steel wire rope mesh, which is woven from high quality stainless steel wire rope. It has
Great advantage over ordinary wire mesh:
1). High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.
2). Anti-corrosive, resist the rust, can be repeated use.
3). Resists chewing by rodents and other pests.
4). Can bear the heavy snow and the gale very much.
5). Without toxic material, safety, environmental protection.

Packing and Shipping

Packing: Paper carton, wooden case

Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.

Stainless Steel Metal Rope Mesh 1.2mm - 4.0mm For Amusement Rides 1

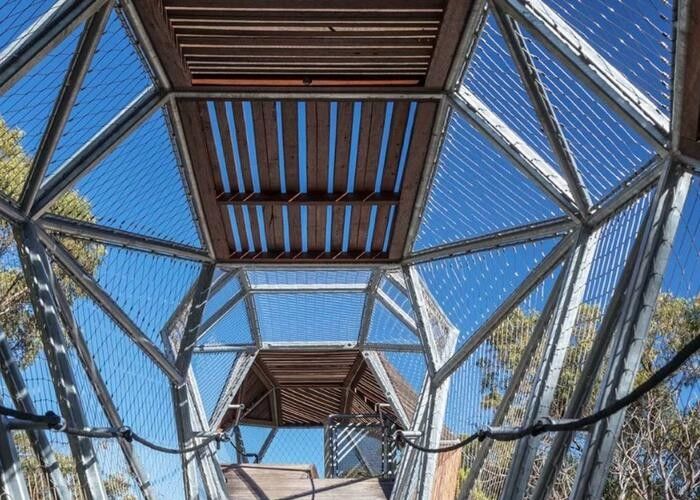

Applications

Stainless Steel Metal Rope Mesh 1.2mm - 4.0mm For Amusement Rides 2

Stainless Steel Metal Rope Mesh 1.2mm - 4.0mm For Amusement Rides 3
