High Strength Stainless Steel Wire Rope Mesh
, Stainless Steel Wire Rope Mesh
, Stainless Steel Railing Wire Mesh

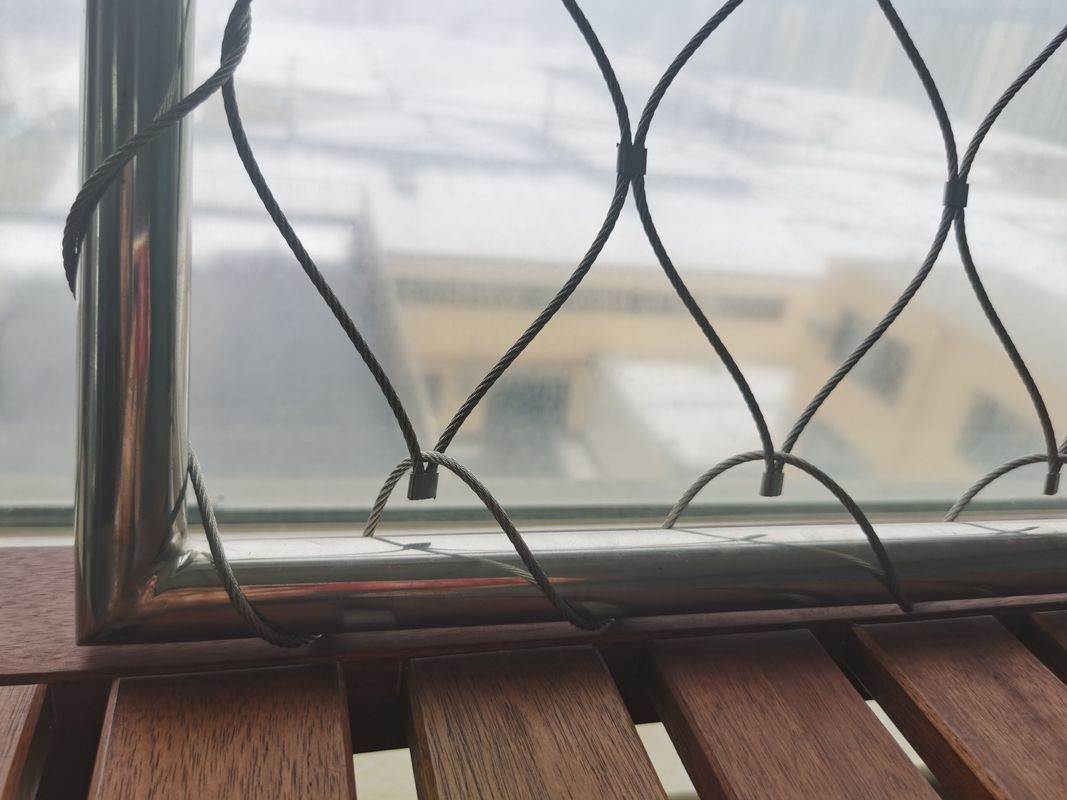

High Strength Stainless Steel Wire Rope Mesh For Balustrade / Railing
High Strength Stainless steel wire Rope Mesh For Balustrade Or Railing
1:About Stainless steel wire rope mesh
Stainless steel , a versatile material with elegance and robustness, has inspired architectural designers for projects of all kinds. Constructed of quality stainless steel wire ropes, flexible wire rope mesh has unique characteristics that allows design flexibility in architecture. It incorporates the tensile strength of the indestructible stainless steel and aesthetically diamond openings, which is graceful and beautiful.
The mesh is light, robust and transparent, and it can stand up to heavy loads, and now it has been widely used as balustrade infill system, zoo enclosures, tensile facade, safety netting and green wall systems in interior and exterior applications.
Material: Stainless Steel 304, 304L, 316, 316L.
Wire diameter: 1.0 mm - 5.0 mm.
Construction of wire cable: 7 × 7, 7 × 19.
Weaving Types: Handwoven, Open type buckle, Closed type buckle.
Mesh opening sizes: 25-300 mm.
Mesh opening angles: 20°, 30°, 60°, 70°, 75°. Mesh aperture at 60° as standard opening.
Surface treatment: primary color or black oxide finish.
Connection: Ferrule or knotted.
Ferrule material: stainless steel, tinned copper, nickel plated copper.
Rope Constructin |
Rope Diameter |
Opening Size |
Breaking Force |
| |
Inch |
mm |
Inch |
mm |
KN |
| 7 × 19 |
1/8 |
3.2 |
4.7" × 4.7" |
120 × 120 |
7.38 |
| 7 × 19 |
1/8 |
3.2 |
4" × 4" |
102 × 102 |
7.38 |
| 7 × 19 |
1/8 |
3.2 |
3.6" × 3.6" |
90 × 90 |
7.38 |
| 7 × 19 |
1/8 |
3.2 |
3" × 3" |
76 × 76 |
7.38 |
| 7 × 19 |
1/8 |
3.2 |
2" × 2" |
51 × 51 |
7.38 |
| 7 × 7 |
3/32 |
2.4 |
4" × 4" |
102 × 102 |
4.18 |
| 7 × 7 |
3/32 |
2.4 |
3.6" × 3.6" |
90 × 90 |
4.18 |
| 7 × 7 |
3/32 |
2.4 |
3" × 3" |
76 × 76 |
4.18 |
| 7 × 7 |
3/32 |
2.4 |
2.4" × 2.4" |
60 × 60 |
4.18 |
| 7 × 7 |
3/32 |
2.4 |
2" × 2" |
51 × 51 |
4.18 |
| 7 × 7 |
5/64 |
2 |
3" × 3" |
76 × 76 |
3.17 |
| 7 × 7 |
5/64 |
2 |
2.4" × 2.4" |
60 × 60 |
3.17 |
| 7 × 7 |
5/64 |
2 |
2" × 2" |
51 × 51 |
3.17 |
| 7 × 7 |
5/64 |
2 |
1.5" × 1.5" |
38 × 38 |
3.17 |
| 7 × 7 |
1/16 |
1.6 |
3" × 3" |
76 × 76 |
2.17 |
| 7 × 7 |
1/16 |
1.6 |
2" × 2" |
51 × 51 |
2.17 |
| 7 × 7 |
1/16 |
1.6 |
1.5" × 1.5" |
38 × 38 |
2.17 |
| 7 × 7 |
1/16 |
1.6 |
1.2" × 1.2" |
30 × 30 |
2.17 |
| 7 × 7 |
1/16 |
1.6 |
1" × 1" |
25 × 25 |
2.17 |
| 7 × 7 |
3/64 |
1.2 |
2" × 2" |
51 × 51 |
1.22 |
| 7 × 7 |
3/64 |
1.2 |
1.5" × 1.5" |
38 × 38 |
1.22 |
| 7 × 7 |
3/64 |
1.2 |
1.2" × 1.2" |
30 × 30 |
1.22 |
| 7 × 7 |
3/64 |
1.2 |
1" × 1" |
25 × 25 |
1.22 |
2:Two types of weaving rope mesh
3:Produt features:
Smooth surface,unique lines,the overall structure strong,generous appearance.Good toughness,strong clmbing ability,impact resistance,it is not easy damaged by outside force impact deformation,has excellent buffer.Product good transport installation,light connect fully,use long time,can and blends into the surrounding enviironment,hav played a very good decorative and protective effect.
3:Application:
4: Packing and Delivery:
Packing: Paper carton, wooden case
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.
