Bridge Flexible Balustrade Cable Mesh Anti Alkali 4.0mm Wire Cable Mesh

Product Details

Place of Origin: CHINA

Brand Name: CHANT

Certification: CE ISO9000

Model Number: CHANT-C-1025

Payment & Shipping Terms

Minimum Order Quantity: 10m2

Price: Usd 8.8-20.8/m2

Packaging Details: Wooden Case

Delivery Time: 5-8 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 10000m2/week

Get Best Price
Highlight:

Flexible Balustrade Cable Mesh

,

Balustrade Cable Mesh Anti Alkali

,

4.0mm Wire Cable Mesh

Material:
SUS 304 SUS 316
Size Of Hole:
25*25mm-300*300mm
Cable Diameter:
1.2mm 1.5mm 2.0mm 2.5mm 3.0mm
Height:
Customized
Characteristic:
Anti-corrosion Non-rusting Anti Acid And Alkali
SUS 304 SUS 316:
Protective, Fall Prevention
Material:
SUS 304 SUS 316
Size Of Hole:
25*25mm-300*300mm
Cable Diameter:
1.2mm 1.5mm 2.0mm 2.5mm 3.0mm
Height:
Customized
Characteristic:
Anti-corrosion Non-rusting Anti Acid And Alkali
SUS 304 SUS 316:
Protective, Fall Prevention
Bridge Flexible Balustrade Cable Mesh Anti Alkali 4.0mm Wire Cable Mesh

Bridge Flexible Stainless Steel Balustrade Cable Mesh Anti Alkali 4.0 Mm Wire





Product Description



Stainless Steel Rope Mesh

Stainless Steel Rope Mesh is a wire mesh fabricated out of woven stainless steel strands with exceptional tensile resilience and flexibility. It is weather resistant, extremely robust and requires virtually no maintenance.

We can produce any size according to the customer's requirements. Our products from production to the factory have strict quality control, our product quality in line with the American Iron and Steel Association standards.



Bridge Flexible Balustrade Cable Mesh Anti Alkali 4.0mm Wire Cable Mesh 0



Specification



Material 304, 304L, 316, 316L
Structure 7*7, 7*19
Wire diameter 1.0mm, 1.2mm, 1.5mm, 1.6mm, 2.0mm, 2.4mm, 2.5mm, 3.0mm, 3.2mm, 4.0mm, etc
Mesh opening 20*20, 25.4*25.4, 30*30, 35*35, 38*38, 40*40, 45*45, 51*51, 60*60, 70*70, 76*76, 80*80, 90*90, 100*100, 120*120, 150*150mm



Type

1. Webnet with ferrule
The webnet standard version with sleeves is a classic. It is versatile, flexible and economical, especially with small rope diameters. The sleeves are made in a specially developed process in our factory by skilled workers. Webnet with sleeves is a good choice for all projects where design and cost-efficiency are of prime importance.
2.Webnet with handwoven

Webnet without sleeves is even more transparent than the version with sleeves while delivering practically identical strength values. Moreover, there are no troublesome light reflections from the sleeves. Consequently, sleeveless webnet is ideally suited for strong and unobtrusive protective nets as well as for animal enclosures in zoo applications because it is easier to see through it when viewing the animals.



Bridge Flexible Balustrade Cable Mesh Anti Alkali 4.0mm Wire Cable Mesh 1





Cable Diameter Mesh Opening Size Normal Break
inch mm inch mm lbs.
1/8 3.2 4.75 x 4.75 120 x 120 1,600
1/8 3.2 4 x 4 102 x 102 1,600
1/8 3.2 3.55 x 3.55 90 x 90 1,600
1/8 3.2 3 x 3 76 x 76 1,600
1/8 3.2 2 x 2 51 x 51 1,600
3/32 2.4 4 x 4 102 x 102 920
3/32 2.4 3.55 x 3.55 90 x 90 920
3/32 2.4 3 x 3 76 x 76 920
3/32 2.4 2.4 x 2.4 60 x 60 920
3/32 2.4 2 x 2 51 x 51 920
5/64 2 3 x 3 76 x 76 676
5/64 2 2.4 x 2.4 60 x 60 676
5/64 2 2 x 2 51 x 51 676
5/64 2 1-1/2 x 1-1/2 38 x 38 676
1/16 1.6 3 x 3 76 x 76 480
1/16 1.6 2 x 2 51 x 51 480
1/16 1.6 1-1/2 x 1-1/2 38 x 38 480
1/16 1.6 1.2 x 1.2 30 x 30 480
1/16 1.6 1 x 1 25.4 x 25.4 480
3/64 1.2 1-1/2 x 1-1/2 38 x 38 270
3/64 1.2 1.2 x 1.2 30 x 30 270
3/64 1.2 1 x 1 25.4 x 25.4 270
3/64 1.2 4/5 X 4/5 20 x 20 270

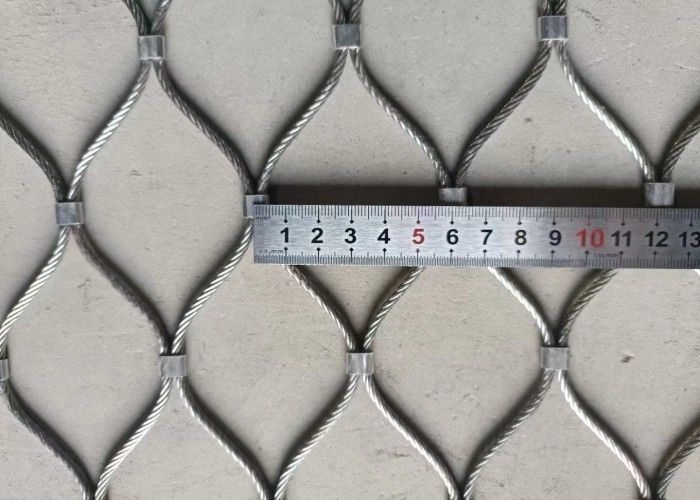

Detailed Photos



Bridge Flexible Balustrade Cable Mesh Anti Alkali 4.0mm Wire Cable Mesh 2





Bridge Flexible Balustrade Cable Mesh Anti Alkali 4.0mm Wire Cable Mesh 3





Package

1. Use bag or bottle packaging
2. Pack the carton
3. Pack the wooden box




Bridge Flexible Balustrade Cable Mesh Anti Alkali 4.0mm Wire Cable Mesh 4







  Application



It widely used in the following areas: Fence, Garden fence, Aviary Mesh, Bird Netting,Animal Enclosure, Zoo Mesh,Agriculture,Residential Fence, stair railing, balustrade infill, architectural surface plant climbing net, Etc.







Bridge Flexible Balustrade Cable Mesh Anti Alkali 4.0mm Wire Cable Mesh 5

Bridge Flexible Balustrade Cable Mesh Anti Alkali 4.0mm Wire Cable Mesh 6
