Hand Woven Stainless Steel Zoo Animal Enclosure Flexible SGS Certified

Name: Hand Woven Stainless Steel Zoo Animal Enclosure Flexible SGS Certified
Brand: Anping County Chant Wire Mesh Manufacturing Co.,Ltd
SKU: QT-C-1010
Price: 5.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: QIANTE

Certification: CE

Model Number: QT-C-1010

Payment & Shipping Terms

Minimum Order Quantity: 5 m2

Price: Usd 9-28 /m2

Packaging Details: Wooden Case

Delivery Time: 5-8 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 8000m2/week

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                Hand Woven Zoo Animal Enclosure, Stainless Steel Zoo Animal Enclosure, Zoo Animal Enclosure Flexible


Name:	Zoo Mesh	Material:	Stainless Steel Wire
Type::	Woven And Ferrule	Wire Thickness:	From 1.2 Mm To 4.0 Mm
Cable Structures:	77 719	Finished:	Ultrasonic Bath / Black Oxide
Application:	Construction Wire Mesh, Protecting Mesh, Screen, Decorative Mesh, Fence Mesh, Cages, Bagpack Protector, Drop Preventing Net	Aperture:	2525-300300mm

Name:	Zoo Mesh
Material:	Stainless Steel Wire
Type::	Woven And Ferrule
Wire Thickness:	From 1.2 Mm To 4.0 Mm
Cable Structures:	77 719
Finished:	Ultrasonic Bath / Black Oxide
Application:	Construction Wire Mesh, Protecting Mesh, Screen, Decorative Mesh, Fence Mesh, Cages, Bagpack Protector, Drop Preventing Net
Aperture:	2525-300300mm

Hand Woven Stainless Steel Zoo Animal Enclosure Flexible SGS Certified

Hand Woven Stainless Steel Zoo Animal Enclosure Flexible SGS Certified

Product Description

The rope mesh material is Stainless steel 304 316 304L 316L.
Wire structure common size: 7x7-the diameter is < 3mm,7x19>3mm.

Stainless steel rope mesh specification

Wire rope diameter	1.2mm,1.5mm,2.0mm,2.5mm,3.0mm,3.2mm,4.0mm
Mesh hole	3x3cm,4x4cm,5x5cm,6x6cm,7x7cm,8x8cm etc.

Don't understand how to mark the mesh size,let us use one drawing mark it. Common opening angle is 600,900.

1. Material of Stainless Steel Zoo Wire Mesh : Stainless steel 304,304L,316,306L etc.

SS304	(%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035
SS316	(%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5
SS316L	(%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0

Recommended Monkey Enclosure Zoo Wire Mesh:

Material	Cable Diameter	Hole Size	Normal Break
SS304/316/316L	3/32" (2.4MM)	2.5" x 2.5"	920 LBS
SS304/316/316L	3/32" (2.4MM)	2" x 2"	920 LBS
SS304/316/316L	5/64" (2.0MM)	2.5" x 2.5"	676 LBS
SS304/316/316L	5/64" (2.0MM)	2" x 2"	676 LBS
SS304/316/316L	1/8" (3.2MM)	2" x 2"	1600 LBS
SS304/316/316L	1/8" (3.2MM)	3" x 3"	1600 LBS

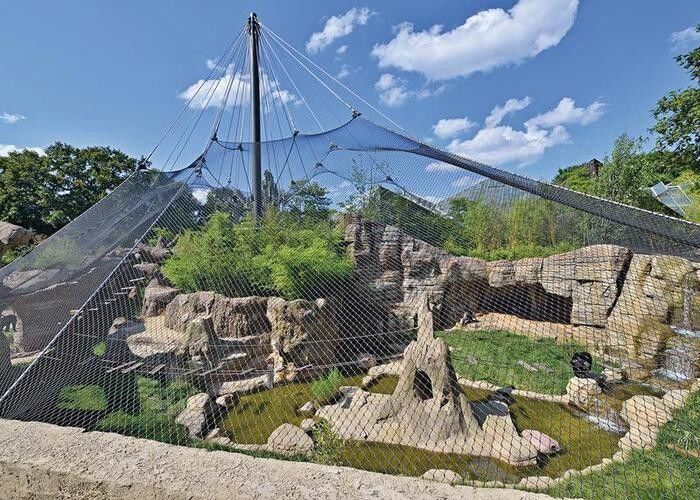

Stainless steel zoo wire is light, robust, and transparent. High-quality stainless steel cables and pressed ferrules are used for the production of the mesh and connected to a load-bearing and flexible structure. The curvature in the opposite direction of the stainless steel cables creates the exceptionally robust characteristics of the mesh can even stand up to heavy loads.

Rope Constructin	Rope Diameter		Opening Size		Breaking Force
	Inch	mm	Inch	mm	KN
7 × 19	1/8	3.2	4.7" × 4.7"	120 × 120	7.38
7 × 19	1/8	3.2	4" × 4"	102 × 102	7.38
7 × 19	1/8	3.2	3.6" × 3.6"	90 × 90	7.38
7 × 19	1/8	3.2	3" × 3"	76 × 76	7.38
7 × 19	1/8	3.2	2" × 2"	51 × 51	7.38
7 × 7	3/32	2.4	4" × 4"	102 × 102	4.18
7 × 7	3/32	2.4	3.6" × 3.6"	90 × 90	4.18
7 × 7	3/32	2.4	3" × 3"	76 × 76	4.18
7 × 7	3/32	2.4	2.4" × 2.4"	60 × 60	4.18
7 × 7	3/32	2.4	2" × 2"	51 × 51	4.18
7 × 7	5/64	2	3" × 3"	76 × 76	3.17
7 × 7	5/64	2	2.4" × 2.4"	60 × 60	3.17
7 × 7	5/64	2	2" × 2"	51 × 51	3.17
7 × 7	5/64	2	1.5" × 1.5"	38 × 38	3.17
7 × 7	1/16	1.6	3" × 3"	76 × 76	2.17
7 × 7	1/16	1.6	2" × 2"	51 × 51	2.17
7 × 7	1/16	1.6	1.5" × 1.5"	38 × 38	2.17
7 × 7	1/16	1.6	1.2" × 1.2"	30 × 30	2.17
7 × 7	1/16	1.6	1" × 1"	25 × 25	2.17
7 × 7	3/64	1.2	2" × 2"	51 × 51	1.22
7 × 7	3/64	1.2	1.5" × 1.5"	38 × 38	1.22
7 × 7	3/64	1.2	1.2" × 1.2"	30 × 30	1.22
7 × 7	3/64	1.2	1" × 1"	25 × 25	1.22

Stainless steel rope mesh feature:

1. Good toughness,anti climb, shock resistance, not easy to deform,excellent cushioning.

2. Long service time,anti rust,structure strong,no need to maintain.

3. Beautiful, lucency, environment friendly.

4. Easy to install,light weight.
