Ferrule Wire Rope Mesh Net Flexible Stainless Steel Cable Netting For Building

Name: Ferrule Wire Rope Mesh Net Flexible Stainless Steel Cable Netting For Building
Brand: Anping County Chant Wire Mesh Manufacturing Co.,Ltd
SKU: CHANT-C-1025
Price: 5.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: CHANT

Certification: CE ISO9000

Model Number: CHANT-C-1025

Payment & Shipping Terms

Minimum Order Quantity: 10m2

Price: Usd 8.8-20.8/m2

Packaging Details: Wooden Case

Delivery Time: 5-8 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 10000m2/week

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                Ferrule Wire Rope Mesh Net, Stainless Steel Wire Rope Mesh Net, Stainless Steel Cable Netting


Material:	Stainless Steel Wire	Hole Size:	2525mm-300300mm
Cable Diameter:	1.2mm-6.0mm	Product Namen:	Rope Mesh Fence Flexible Stainless Steel Cable Netting For Building
Characteristic:	Anti-corrosion Non-rusting Anti Acid And Alkali	Length:	Customized
Width:	Customized	Application:	Protective, Fall Prevention

Material:	Stainless Steel Wire
Hole Size:	2525mm-300300mm
Cable Diameter:	1.2mm-6.0mm
Product Namen:	Rope Mesh Fence Flexible Stainless Steel Cable Netting For Building
Characteristic:	Anti-corrosion Non-rusting Anti Acid And Alkali
Length:	Customized
Width:	Customized
Application:	Protective, Fall Prevention

Ferrule Wire Rope Mesh Net Flexible Stainless Steel Cable Netting For Building

Rope Mesh Fence Flexible Stainless Steel Cable Netting For Building

The flexible Stainless Steel Diamond Rope Mesh For Playground ferrule type is rhombus mesh, has excellent flexible performance. has protective and safety effects.

The specification as follows:

Material:stainless steel 304, 304L, 316, 316L

Cable Structure:7x7 and 7x19.

Cable Diameter:1/8", 3/32", 1/16" 1/12", and 3/64"

Mesh Size:1"x 1", 1-1/2"x1-1/2", 2"x2", 3"x3", and 4"x4".

Height: general 0.5-30meter or customized.
Length: general 0.5-30meter or customized.
Shape: There are irregular shape, triangle parallelogram trapezoid etc.

Rope Constructin	Rope Diameter		Opening Size		Breaking Force
Rope Constructin	Inch	mm	Inch	mm	KN
7 × 19	1/8	3.2	4.7" × 4.7"	120 × 120	7.38
7 × 19	1/8	3.2	4" × 4"	102 × 102	7.38
7 × 19	1/8	3.2	3.6" × 3.6"	90 × 90	7.38
7 × 19	1/8	3.2	3" × 3"	76 × 76	7.38
7 × 19	1/8	3.2	2" × 2"	51 × 51	7.38
7 × 7	3/32	2.4	4" × 4"	102 × 102	4.18
7 × 7	3/32	2.4	3.6" × 3.6"	90 × 90	4.18
7 × 7	3/32	2.4	3" × 3"	76 × 76	4.18
7 × 7	3/32	2.4	2.4" × 2.4"	60 × 60	4.18
7 × 7	3/32	2.4	2" × 2"	51 × 51	4.18
7 × 7	5/64	2	3" × 3"	76 × 76	3.17
7 × 7	5/64	2	2.4" × 2.4"	60 × 60	3.17
7 × 7	5/64	2	2" × 2"	51 × 51	3.17
7 × 7	5/64	2	1.5" × 1.5"	38 × 38	3.17
7 × 7	1/16	1.6	3" × 3"	76 × 76	2.17
7 × 7	1/16	1.6	2" × 2"	51 × 51	2.17
7 × 7	1/16	1.6	1.5" × 1.5"	38 × 38	2.17
7 × 7	1/16	1.6	1.2" × 1.2"	30 × 30	2.17
7 × 7	1/16	1.6	1" × 1"	25 × 25	2.17
7 × 7	3/64	1.2	2" × 2"	51 × 51	1.22
7 × 7	3/64	1.2	1.5" × 1.5"	38 × 38	1.22
7 × 7	3/64	1.2	1.2" × 1.2"	30 × 30	1.22
7 × 7	3/64	1.2	1" × 1"	25 × 25	1.22

The Stainless Steel wire rope Ferruled Mesh, the wire ropes are neither knotted nor crossed, it is a construction based on stainless steel wire ropes that lie parallel in pairs connected and reciprocally curved by stainless steel ferrules. Rope Mesh Description is custom manufactured to in widths and lengths to suit your balustrade, railing or architectural application. Diagonal and irregular shapes can also be supplied.

Details photos:

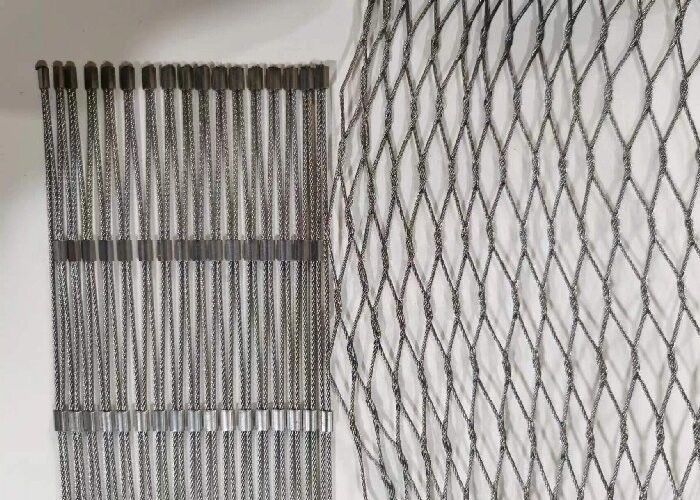

Ferrule Wire Rope Mesh Net Flexible Stainless Steel Cable Netting For Building 2

Ferrule Wire Rope Mesh Net Flexible Stainless Steel Cable Netting For Building 3

Features:

High Flexibility

High Strength

Good Softness

Excellent Rust-Resistance,Recyclable

Outstanding Grand Appearance

Maintenance-Free and Environmentally Friendly

Application

Cable rope mesh is very flexible, and its width and length can be modified. Therefore, it is widely used in various fields of our daily life, such as Slope Protection Rope Mesh, Zoo Mesh, Green Wall Rope Mesh, Decoration Mesh, Balustrade Mesh, Safety rope mesh, Suspension Bridge Railing Mesh, Anti-theft Backpack Protector.

Ferrule Wire Rope Mesh Net Flexible Stainless Steel Cable Netting For Building 4

Ferrule Wire Rope Mesh Net Flexible Stainless Steel Cable Netting For Building 5
