Real Gabion Mesh Manufacturer 8X10cm Wire 2.7mm / 3mm Galvanized Gabion Box

Name: Real Gabion Mesh Manufacturer 8X10cm Wire 2.7mm / 3mm Galvanized Gabion Box
Brand: Anping County Chant Wire Mesh Manufacturing Co.,Ltd
SKU: QT-A-520
Price: 1.75 USD
Availability: InStock

Product Details

Place of Origin: HEBEI

Brand Name: QIANTE

Certification: ISO9000 CE SGS

Model Number: QT-A-520

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Price negotiable

Packaging Details: Plywood Case

Delivery Time: 10 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 10000m2/week

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                Real Gabion Mesh Manufacturer, Gabion Mesh 8X10cm, 3mm Galvanized Gabion Box


Product Name:	China Real Gabion Manufacturer Mesh 8X10cm Wire 2.7mm Or 3mm Galvanized Gabion Box	Key Words:	Gabion Mesh,gabion Basket,cage
Hole Shape:	Hexagonal	Surface Treatment:	Hot Dipped Galvanized, PVC Coated, Galfan Wire
Aperture:	6080 80100 100*120mm	Application:	Gabion Mesh, Gabions, Construction Wire Mesh, Reinforcing Wall

Product Name:	China Real Gabion Manufacturer Mesh 8X10cm Wire 2.7mm Or 3mm Galvanized Gabion Box
Key Words:	Gabion Mesh,gabion Basket,cage
Hole Shape:	Hexagonal
Surface Treatment:	Hot Dipped Galvanized, PVC Coated, Galfan Wire
Aperture:	6080 80100 100*120mm
Application:	Gabion Mesh, Gabions, Construction Wire Mesh, Reinforcing Wall

Real Gabion Mesh Manufacturer 8X10cm Wire 2.7mm / 3mm Galvanized Gabion Box

Real Gabion Manufacturer Mesh 8X10cm Wire 2.7mm or 3mm Galvanized Gabion Box

Product Description

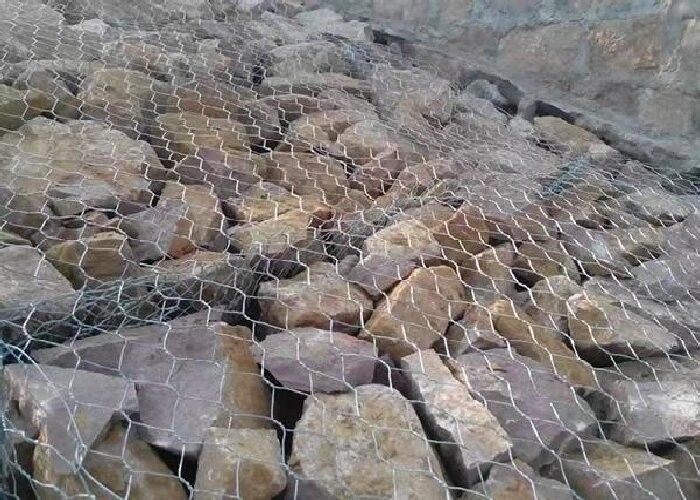

Gabion-a double-twisted wire mesh container of variable sizes, uniformly partitioned into internal cells, interconnected with other similar units, and filled with stone at the project site to form flexible, permeable, monolithic structures such as retaining walls, sea wall, channel linings, revetments, and weirs for erosion control projects.

Gabion Mattress-a double-twisted wire mesh container uniformly partitioned into internal cells with relatively small height in relation to other dimensions, having smaller mesh openings than the mesh used for gabions; revet mattresses are generally used for riverbank protection and channel linings.

Sizes for Gabion and Gabion Mattress
L (m)	W (m)	H (m)	# of Cells
2	1	1	2
3	1	1	3
4	1	1	4
2	1	0.5	2
3	1	0.5	3
4	2	0.3	4
6	2	0.3	6

Standard Mesh Wire
Mesh Type	D (mm)	Mesh Tolerance	Mesh Wire (mm)
8x10	83	±10%	2.70, 3.00mm
6x8	64	±10%	2.20mm

Standard Wire Diameters
Wire Diameter ø mm	2.20	2.70	3.00	3.40	3.80
Wire Tolerance (±) ø mm	0.10	0.10	0.10	0.10	0.10
Min. Qty of Zinc gr/m2	214	244	259	259	275

Double-twisted wire gabions and gabion mattresses are classified according to coating, as follows:

Style 1, consists of double-twisted wire mesh made from wire which is zinc coated before being double-twisted into mesh. Fasteners, lacing wire, and stiffeners are produced from zinc-coated wire.
China Real Gabion Manufacturer Mesh 8X10cm Wire 2.7mm or 3mm Galvanized Gabion Box

China Real Gabion Manufacturer Mesh 8X10cm Wire 2.7mm or 3mm Galvanized Gabion Box

Style 2, consists of double-twisted wire mesh made from wire which is coated with Zn-5A1-MM before being double-twisted into mesh. Fasteners, lacing wire, and stiffeners are also produced from Zn-5A1-MM coated wire.
China Real Gabion Manufacturer Mesh 8X10cm Wire 2.7mm or 3mm Galvanized Gabion Box

Style 3, consists of double-twisted mesh, lacing wire, and stiffeners as Style 1 & 2 and overcoated with PVC. Fasteners shall be of stainless steel wire.
China Real Gabion Manufacturer Mesh 8X10cm Wire 2.7mm or 3mm Galvanized Gabion Box

Real Gabion Mesh Manufacturer 8X10cm Wire 2.7mm / 3mm Galvanized Gabion Box 3

Real Gabion Mesh Manufacturer 8X10cm Wire 2.7mm / 3mm Galvanized Gabion Box 4

Packing details:

1) Outside with plastic film

2) In bundle

3) As per customer's special request

Shipping:

Samples will be shipped by express service - DHL, EMS, UPS, TNT or Fedex.

1, By counier, like DHL, PUS, Fedex, dtc. Usual 5-7 days;

2, By air to the air port, usual 3-5 days arrives;

3, By sea to the sea port, usual 25-45 days
