Woven 1/8 Inch Black Oxide Cable Mesh Customized For Safety Netting

Name: Woven 1/8 Inch Black Oxide Cable Mesh Customized For Safety Netting
Brand: Anping County Chant Wire Mesh Manufacturing Co.,Ltd
SKU: QT-C-1040
Price: 10.85 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: CHANT

Certification: CE ISO9000 SGS

Model Number: QT-C-1040

Payment & Shipping Terms

Minimum Order Quantity: 10m2

Price: Price negotiable

Packaging Details: Wooden Case

Delivery Time: 5-8 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 8000m2/week

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                1/8 Inch Black Oxide Cable Mesh, Black Oxide Cable Mesh Customized, Black Oxide Cable Mesh Netting


Product Name:	Black Oxide Cable Mesh	Key Words:	Wire Rope Mesh,Black Oxide Mesh
Material:	Stainless Steel Wire	Wire Thickness:	1.2 Mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm
Mesh Angle:	60°IN RHOMBUS	Finished:	Black Oxide
Mesh Eye Size::	25x25 To 100x100mm Or Bigger	Application:	Liquid Filter, Chemical Industry, Curtain

Product Name:	Black Oxide Cable Mesh
Key Words:	Wire Rope Mesh,Black Oxide Mesh
Material:	Stainless Steel Wire
Wire Thickness:	1.2 Mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm
Mesh Angle:	60°IN RHOMBUS
Finished:	Black Oxide
Mesh Eye Size::	25x25 To 100x100mm Or Bigger
Application:	Liquid Filter, Chemical Industry, Curtain

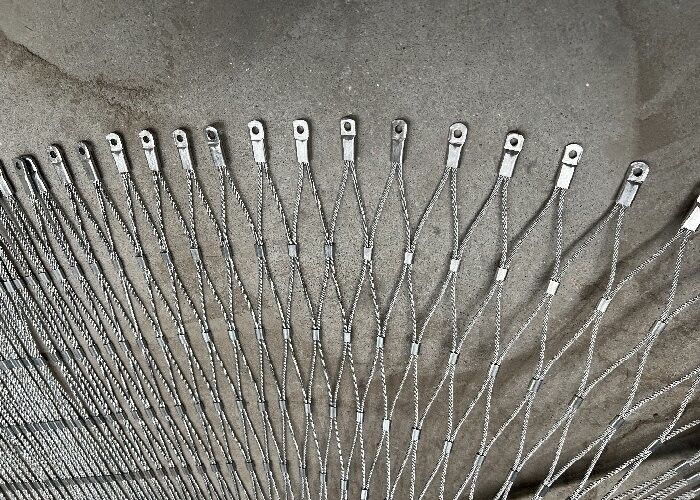

Woven 1/8 Inch Black Oxide Cable Mesh Customized For Safety Netting

Product Description

The rope mesh material is Stainless steel 304 316 304L 316L.
Wire structure common size: 7x7-the diameter is < 3mm,7x19>3mm.

Stainless steel rope mesh specification

Wire rope diameter	1.2mm,1.5mm,2.0mm,2.5mm,3.0mm,3.2mm,4.0mm
Mesh hole	3x3cm,4x4cm,5x5cm,6x6cm,7x7cm,8x8cm etc.

Don't understand how to mark the mesh size,let us use one drawing mark it. Common opening angle is 600,900. H is the hole high,W is the hole wide.

Our Promise
1.100% QC inspection before shipment.
2.Quality Guarantee.
3.30 Years Service Life.
4.Direct Factory Price.
5.We have strict control over the production, measurement, and packing.
6.As long as provide specifications, we can do what you want products.

Wire structure	Wire diameter(mm)	Weight(kg/sq.M)	Hole size(mm)
7 X 19	3	1.9	50*50
7 X 19	3	1.9	50*90
7 X 19	3	1.6	60*106
7 X 19	3	0.7	80*140
7 X 7	2	2	30*40
7 X 7	2	1.3	40*70
7 X 7	2	0.8	50*87
7 X 7	2	0.8	60*106
7 X 7	1.5	0.7	40*70
7 X 7	1.5	0.5	50*100
7 X 7	1.5	0.4	80*141
7 X 7	1.5	0.3	100*150
7 X 7	1.5	0.6	50*87
7 X 7	1.5	0.5	60*106
7 X 7	1	0.85	30*30
7 X 7	1	0.65	40*70

elastic black epoxy coated stainless steel wire rope mesh net is also widely used as the safety fence
such as balustrade mesh,railing mesh,plant climbing wall,architectural mesh,falling prevention mesh,
staircase protective mesh, the courtyard security fence and so on.

Woven 1/8 Inch Black Oxide Cable Mesh Customized For Safety Netting 2

Details:

Woven 1/8 Inch Black Oxide Cable Mesh Customized For Safety Netting 3

Application

Woven 1/8 Inch Black Oxide Cable Mesh Customized For Safety Netting 4

Woven 1/8 Inch Black Oxide Cable Mesh Customized For Safety Netting 5
