Architectural Cable Rope 304 316 Stainless Steel Wire Mesh Netting For Balustrade Easy To Install



Stainless steel rope mesh ,also called SS cable mesh, made form high quality stainless steel wire rope, is pliable, transparent grid structure which is made of stainless steel rope with multifunctional and durable performance. Wire Rope Mesh has the skin-like characteristics of a diaphragm which can form a plane surface but can also be tensioned into three-dimensional forms featuring funnel-type, cylindrical, or spherical shapes. As part of our extensive, easy-to-assemble structural wire rope meshes, it is ideal for flexible, intelligent solutions that address a vast variety of requirements.

Specification

Material: stainless steel 304, 304L, 316, 316L.
Ferrule material: tinned copper, nickel plated copper, stainless steel.
Surface treatment: silver or black oxide finish.
Construction of wire cable: 7 × 7, 7 × 19.
Cable diameter: 1.0-5.0 mm.

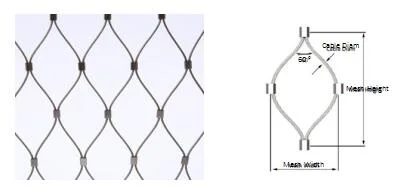

Mesh opening sizes: 20-200 mm.
Mesh opening angles: 20°, 30°, 60°, 70°, 75°. Mesh aperture at 60° as standard opening.
Connection: ferrule or knotted.
Certification: certified to EN1263-1 for static and dynamic load capacity.
Ordering: specific to order, according to the project. The following specifications are that customers ordered frequently.

specification
