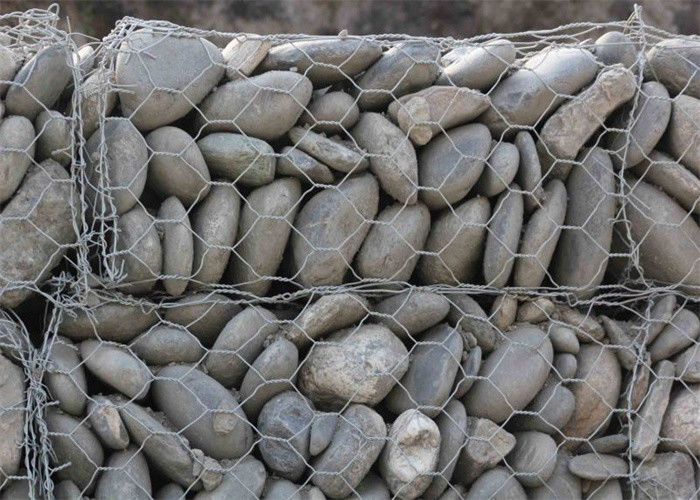

Easily Assembled Gabion Mesh Retaining Wall Galvanized Gabion Stone Baskets

Name: Easily Assembled Gabion Mesh Retaining Wall Galvanized Gabion Stone Baskets
Brand: Anping County Chant Wire Mesh Manufacturing Co.,Ltd
SKU: QT-A-520
Price: 1.75 USD
Availability: InStock

Product Details

Place of Origin: HEBEI

Brand Name: CHANT

Certification: ISO9000 CE SGS

Model Number: QT-A-520

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Price negotiable

Packaging Details: Plywood Case

Delivery Time: 10 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 10000m2/week

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                Easily Assembled Gabion Mesh, Gabion Mesh Retaining Wall, Galvanized Gabion Stone Baskets


Product Name:	Wholesale Easily Assembled Retaining Wall Galvanized Gabion Stone Baskets Mesh Box	Key Words:	Gabion Mesh,gabion Basket,cage
Hole Shape:	Hexagonal	Surface Treatment:	Hot Dipped Galvanized, PVC Coated, Galfan Wire
Aperture:	6080 80100 100*120mm	Application:	Gabion Mesh, Gabions, Construction Wire Mesh, Reinforcing Wall

Product Name:	Wholesale Easily Assembled Retaining Wall Galvanized Gabion Stone Baskets Mesh Box
Key Words:	Gabion Mesh,gabion Basket,cage

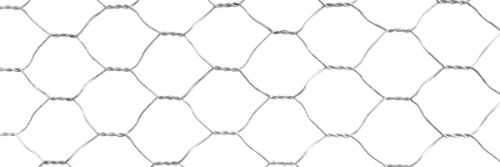

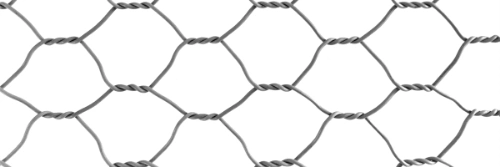

Hole Shape:	Hexagonal
Surface Treatment:	Hot Dipped Galvanized, PVC Coated, Galfan Wire
Aperture:	6080 80100 100*120mm
Application:	Gabion Mesh, Gabions, Construction Wire Mesh, Reinforcing Wall

Easily Assembled Gabion Mesh Retaining Wall Galvanized Gabion Stone Baskets

Wholesale Easily Assembled Retaining Wall Galvanized Gabion Stone Baskets Mesh Box

Product Description

Gabion box, also known as gabion basket, is made of woven corrosion resistance. High strength and good ductility of galvanized steel wire or PVC coated steel wire. The material of the steel wire is zinc-5% aluminum alloy, low carbon steel, stainless steel or iron.It is used for slope and foundation pit support, prevention or rock breaking, slope planting, water and soil protection, wall erosion prevention and so on.

Gabion size (m)	Wire diameter			Mesh opening	Surface treatment
	Mesh wire (mm)	Selvage wire (mm)	Tie wire (mm)
2×1×0.5	2.0 2.2 2.4 2.7 3.0	2.4 2.7 3.0 3.4 3.9	1.8 2.0 2.2	60 x 80mm 80 x 100mm 80 x 120mm 100 x 120mm 120 x 150mm	Galvanized Galfan PVC coated PE coated
2×1×1.0
3×1×0.5
3×1×1.0
4×1×1.0
6×1×1.0
2×1×0.3(Mattress)
3×1×0.3(Mattress)
All sizes can customized according to your request

Double-twisted wire gabions and gabion mattresses are classified according to coating, as follows:

Style 1, consists of double-twisted wire mesh made from wire which is zinc coated before being double-twisted into mesh. Fasteners, lacing wire, and stiffeners are produced from zinc-coated wire.
China Real Gabion Manufacturer Mesh 8X10cm Wire 2.7mm or 3mm Galvanized Gabion Box

China Real Gabion Manufacturer Mesh 8X10cm Wire 2.7mm or 3mm Galvanized Gabion Box

Style 2, consists of double-twisted wire mesh made from wire which is coated with Zn-5A1-MM before being double-twisted into mesh. Fasteners, lacing wire, and stiffeners are also produced from Zn-5A1-MM coated wire.
China Real Gabion Manufacturer Mesh 8X10cm Wire 2.7mm or 3mm Galvanized Gabion Box

Style 3, consists of double-twisted mesh, lacing wire, and stiffeners as Style 1 & 2 and overcoated with PVC. Fasteners shall be of stainless steel wire.
China Real Gabion Manufacturer Mesh 8X10cm Wire 2.7mm or 3mm Galvanized Gabion Box

Easily Assembled Gabion Mesh Retaining Wall Galvanized Gabion Stone Baskets 3

Easily Assembled Gabion Mesh Retaining Wall Galvanized Gabion Stone Baskets 4

Packing details:

1) Outside with plastic film

2) In bundle

3) As per customer's special request
